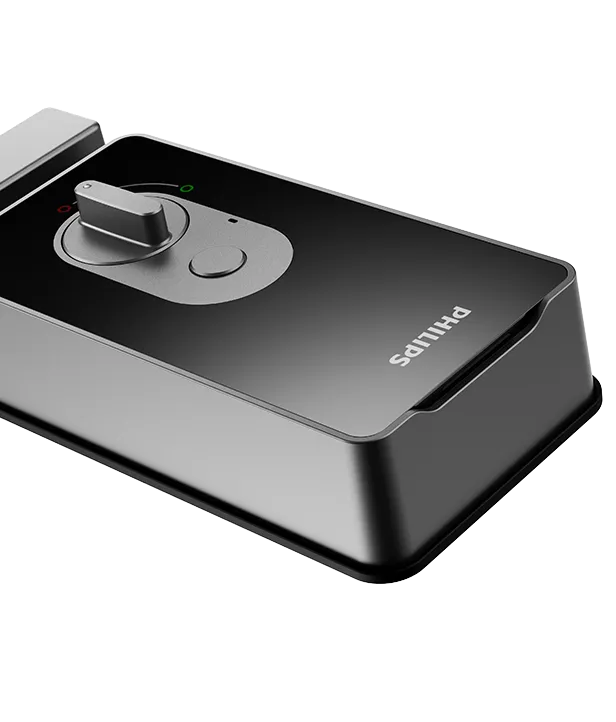

DDL505-5HBS is built for outdoor use with an IP66 rating, resisting dust and water jets. Tested to endure 70°C for 8 hours*, it withstands sun, rain, and extreme weather, offering reliable, all-weather protection for your home.
Product Features

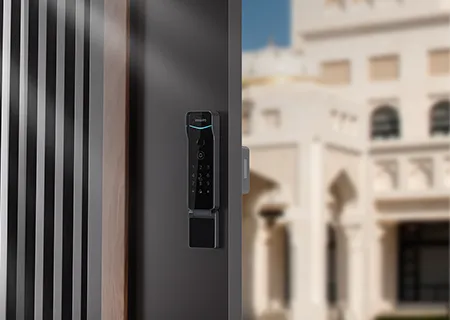

Built for Sun-drenched Outdoor Environments
The DDL505-5HBS supports an optional solar panel + LiFePO₄ battery power solution—high-efficiency, eco-friendly, and purpose-built for regions with abundant sunlight.
Solar panel and LiFePO₄ battery are not included and must be purchased separately.

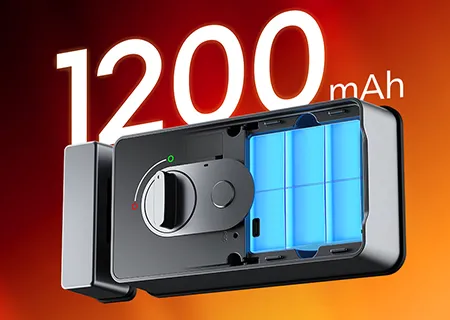

Eco Power, Unstoppable Energy
It supports solar charging for reliable, sustainable energy. In sun-rich environments*, the LiFePO₄ battery can be fully charged in as fast as 13.6 days*, based on around 5 hours of sunlight per day. With typical daily use—10 lock/unlock cycles—the battery lasts up to 2 months* on a full charge. Powered by green energy and built for long-lasting performance, the lock stays on without interruption—so you never have to worry about running out of power.
•*Sun-rich environments: refer to areas with an average of 6.8 hours or more of sunlight per day.
•*2-month: battery life is based on internal lab testing and may vary depending on actual usage.
•*13.6 days: lab-tested under variable lighting conditions, with approx. 5 hours of solar charging per day. Charging a 1200mAh LiFePO₄ battery took 13.6 to 17.2 days.

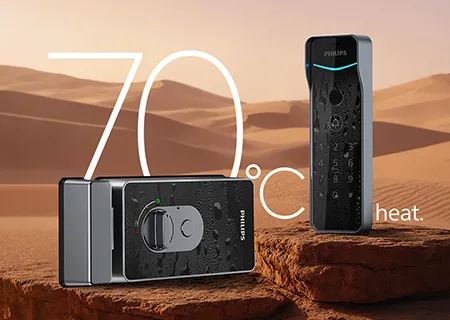

Tough Against 70°C Heat, Defying Extreme Conditions
Engineered for sun-scorched regions, the Philips DDL505-5HBS has been rigorously tested at –25°C and 70°C for 5 hours, remaining fully functional. Unfazed by extreme cold or heat, it effortlessly handles hot climates and regions with significant day-night temperature fluctuations.

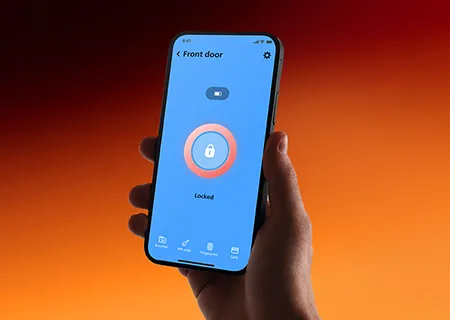

Work with Home Access App
Stay connected to your home even when you're away, with real-time updates on your door's activity.
•Set lock access methods
•View lock logs
•Receive doorbell notifications
•Check door unlock history
Get push alerts for any anomalies
Custom Access Control PIN Tailored to Meet All Visitor Entry Needs
•One-time codes: a maximum of 10 unique time-limited one-time codes can be generated within 1 hour.
•Recurring codes: codes that can be reused at specific times each week.
Time-limited codes: codes set to be valid within a specific duration.

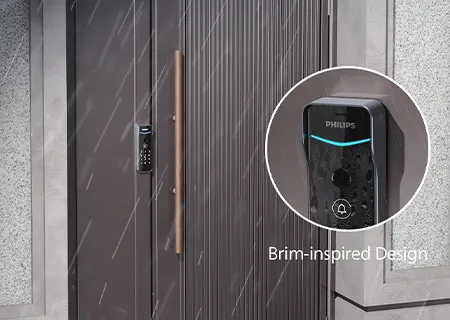

Brim-inspired Design
Effectively shields against direct sunlight while channeling rainwater, boosting the DDL505-5HBS's outdoor durability and extending its lifespan.

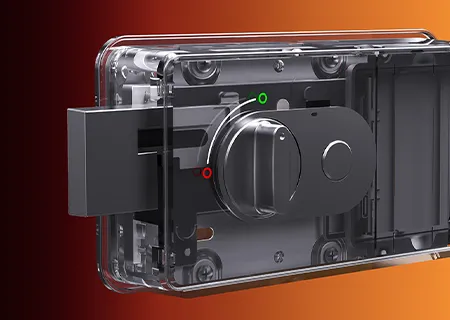

Automatic Locking upon Door Closed
Our lock comes with Hall sensor technology to automatically lock the door as soon as it's closed in auto mode. The deadbolt pops up instantly, providing you with peace of mind as you leave.
Show All Product Features
Technical Parameters
| General Characteristics | Material | Aluminum alloy |
| Finishing | Glass | |
| Color | Starry Gray | |
| Mortise | Built-in deadbolt | |
| Fingerprint sensor | Semiconductor | |
| Remote Connection | Bluetooth+Gateway |
| Access Solution | Outdoor unlocking | Fingerprint |
| PlN code | ||
| Key tag | ||
| Temporary PIN code | ||
| Indoor unlocking | Knob | |
| Button |
| Capacity | User PlN code | 20(included one-time PlN code) |
| Master PIN code | 1 | |
| Fingerprint | 99 | |
| Master Fingerprint | 1 | |
| Key tag | 100 |
| Modes | *Operation mode | Auto Mode |
| System unlock mode | General mode | |
| Dual verification mode |
| Electrical Power | Power supply | 4 AA Batteries |
| *Battery life | 6 Months | |
| Emergency charging | 5V power bank |
| Operating Environment | Temperature | -25°C~+70°C |
| Humidity | 15%RH~93%RH |
| Installation Requirements | Door thickness | 35~65mm |
| Other range* | ||
| Door opening direction | Left-n/Left-out/Right-in/Right-out | |
| Door type | Wooden/Copper/Security |
| Key Features | Lock | System lock |
| Safety | Hidden PIN code | |
| Dual verification | ||
| Alert | Low battery level alert | |
| System locking alarm | ||
| Outside forced lock alert | ||
| Remote | APP temporary PIN code | |
| APP add/delete PIN code | ||
| Check access record | ||
| Remote unlock | ||
| Update | 0TA & update via rear interface | |
| Indicator | Low battery level indicator | |
| Lock status indicator | ||
| System lock indicator | ||
| Voice guide | Human voice guide |
Show All Technical Parameters
